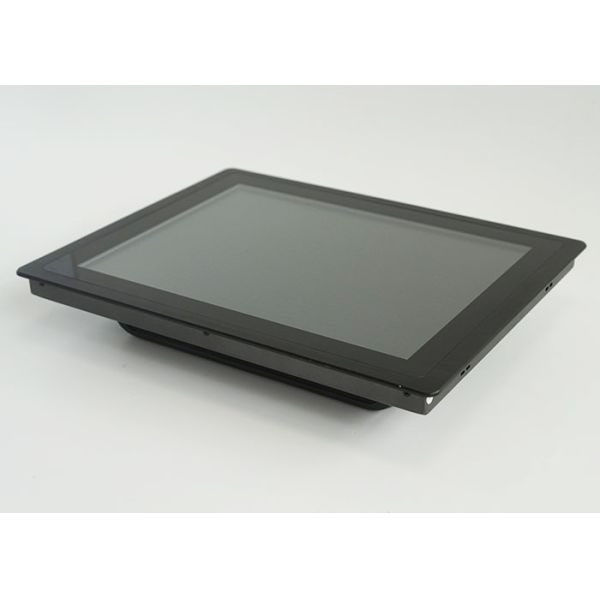

Embedded LCD Display Capacitive Touch Monitor 12" Raspberry Pi 3 Compatible

Name: Embedded LCD Display Capacitive Touch Monitor 12quot Raspberry Pi 3 Compatible
Brand: Sihovision
Price: 1 USD

Buy cheap Embedded LCD Display Capacitive Touch Monitor 12" Raspberry Pi 3 Compatible product

Brand Name : Sihovision

Model Number : SL12

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal, MoneyGram

Product name : 12" Embedded LCD Display

Resolution : 1024*768 or 800*600

Aspect ratio : 4:3

Interfaces : HDMI VGA DVI USB

Brightness : 300 cd/m2

Wide voltage : 12-24V

Touch Type : Capacitive touch screen

Features : Raspberry Pi 3 Compatible

Contact Now

12" Embedded LCD Display Capacitive Touch Screen Raspberry Pi 3 Compatible

Feature

12" TFT LCD panel
Front panel IP65 waterproof
1024*768 or 800*600 resolution
300cd/m2 brightness for indoor use
Capacitive touch panel, covered with 2mm tempered glass for vandal proof
VGA HDMI DVI USB interface
High performance mainboard, 7x24 continuous operation
Support 12-24V wide voltage
Ultra-thin front bezel 3mm, ideal for embedded mounting

Specification

Model: SL12
LCD panel
Panel size	12"
Resolution	1024768 or 800600, square screen
Aspect ratio	4:3
Support Color	16.7M colors
Brightness (cd/m²)	300+
Contrast ratio	1000:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points )
Surface Hardness	7H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
Touch options	(5 wires restive touch, IR touch optional)
Signal Ports
VGA	1x VGA
DVI	1x DVI
HDMI	1x HDMI
Audio in/out	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS	Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply	AC 100 - 240V, 50-60Hz
Working voltage	DC 12-24V
Power consumption	≤35W
Enclosure
Material	Aluminum Alloy
Color	Black, Silver
VESA mounting	75x75mm/100x100mm
IP grade	Front panel IP65 waterproof
Operating Environment
Temperature Range	operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity	operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight	3.5kg
Gross weight	4kg
Product Dimension	31.925.75.95cm
Packing size	433818cm
Accessories	Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card
Other
Mounting	embedded mounting screws
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

12" Embedded LCD Display Application

CNC cutting machine
Testing machine
Die casting machine
Self-service payment kiosk
Car parking equipment
Industrial automation
Laundry locker
Dry cleaning shop

Pictures

Embedded LCD Display Capacitive Touch Monitor 12" Raspberry Pi 3 Compatible

Drawing

Embedded LCD Display Capacitive Touch Monitor 12" Raspberry Pi 3 Compatible
